Bad Boy Cutters

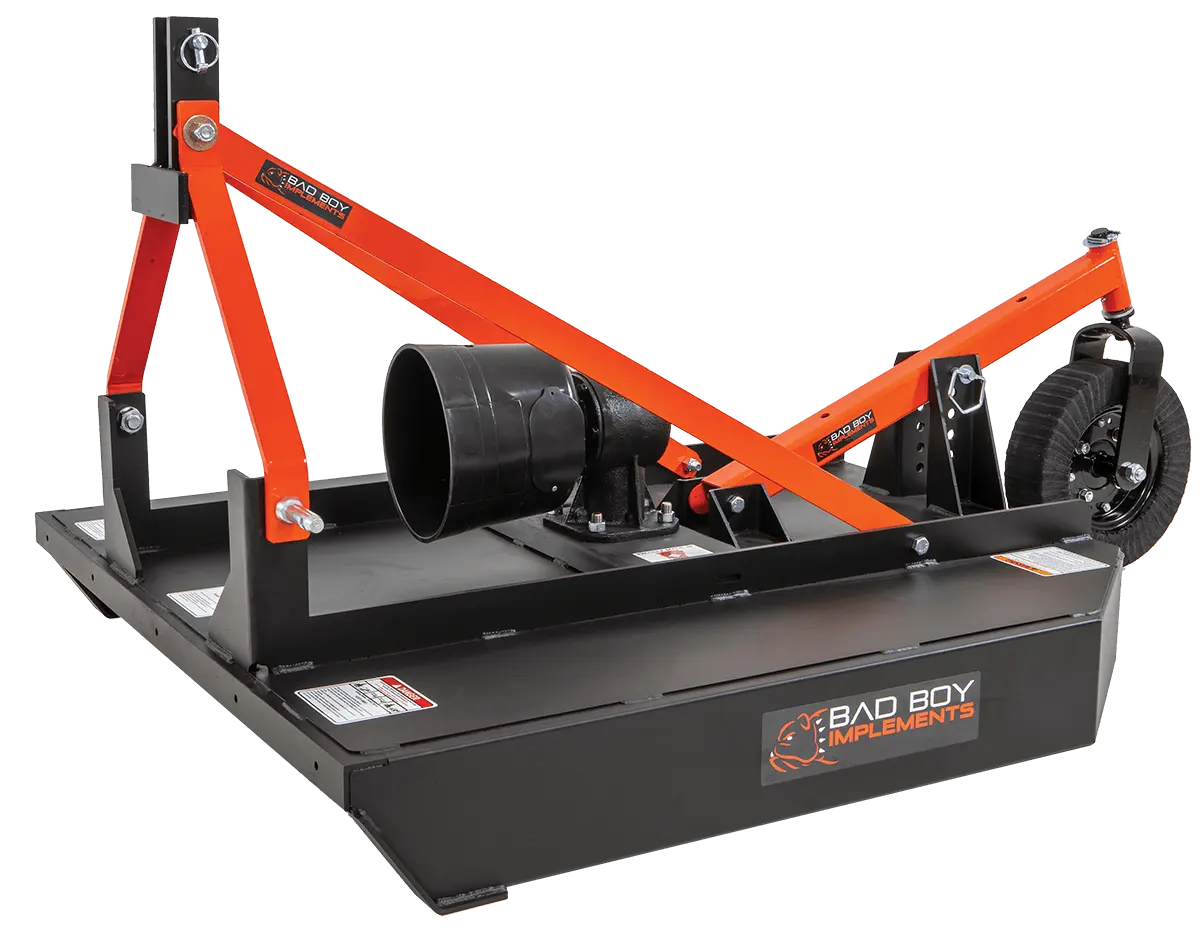

| Size | 4' SD Cutter | 4' Cutter |
|---|---|---|
| Width | 48" | 48" |
| HP Rating | 24-40 | 24-40 |
| Side Skirt Depth | 7" | 7" |
| Blades (Thickness & Width) | 1/2" x 3" | 1/2" x 3" |
| Weight | 425 lbs. | 600 lbs. |
| Gear Box | 40 HP | 40 HP |
| Hitch | CAT 1 or Quick Hitch | CAT 1 or Quick Hitch |
| Construction/Clutch | 11 ga deck, slip clutch or shear pin: CAT 4 Driveline | 10 ga deck, slip clutch: CAT 4 Driveline |
| Size | 5' SD Cutter | 5' Cutter |
|---|---|---|
| Width | 60" | 60" |
| HP Rating | 24-55 | 24-55 |
| Side Skirt Depth | 7" | 7" |
| Blades (Thickness & Width) | 1/2" x 3" | 1/2" x 3" |
| Weight | 500 lbs. | 718 lbs. |
| Gear Box | 50 HP | 50 HP |
| Hitch | CAT 2 or Quick Hitch | CAT 1 or Quick Hitch |
| Construction/Clutch | 11 ga deck, slip clutch or shear pin: CAT 4 Driveline | 10 ga deck, slip clutch: CAT 4 Driveline |
| Size | 6' Cutter | 7' Cutter |
|---|---|---|
| Width | 72" | 84" |
| HP Rating | 35-72 | 35-83 |
| Side Skirt Depth | 8.25" | 9" |
| Blades (Thickness & Width) | 1/2" x 3.5" | 1/2" x 3.5" |
| Weight | 880 lbs. | 1,187 lbs. |
| Gear Box | 75 HP | 85 HP |
| Hitch | CAT 1 or Quick Hitch | CAT 2 or Quick Hitch |
| Construction/Clutch | 10 ga deck, slip clutch or shear pin: CAT 6 Driveline | 10 ga and 7 ga, slip clutch: CAT 6 Driveline |

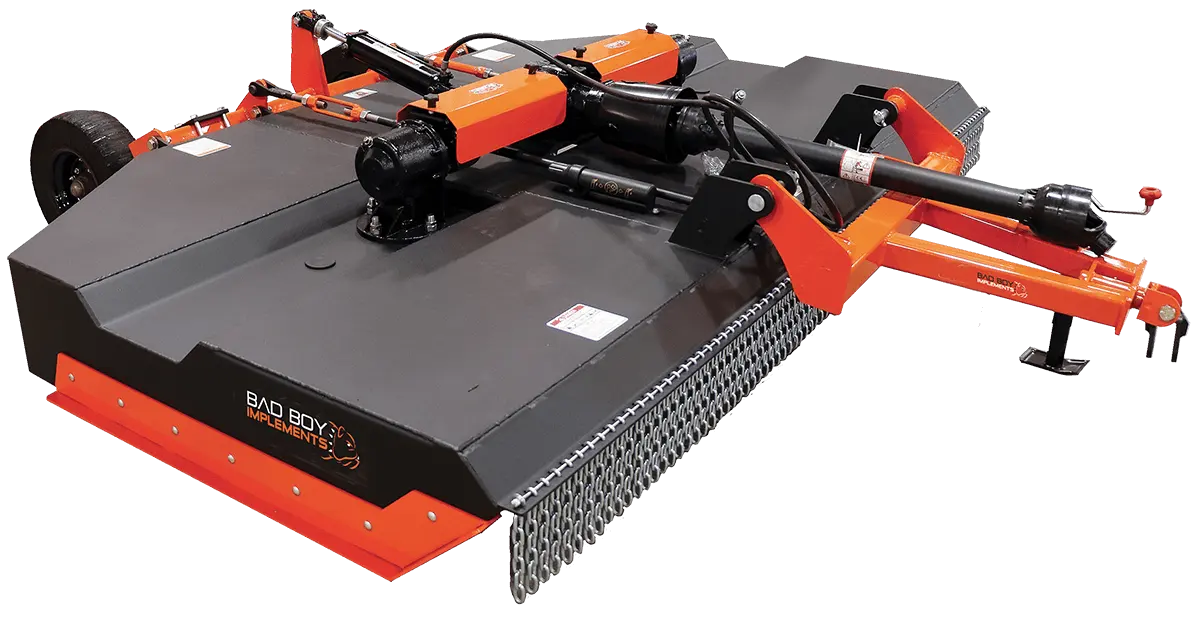

| Size | 10' Cutter |
|---|---|
| Width | 130" |
| HP Rating | 60-120 |
| Side Skirt Depth | 12" |
| Blades (Thickness & Width) | 1/2" x 4" |
| Weight | 2,050 lbs. |
| Gear Box | 100 HP Center 2-75 HP Sides |
| Hitch | CAT 3 |
| Construction/Clutch | 10 ga, slip clutch: Cat 6 Driveline: Tail Wheels Hydraulic Height Adjust |
