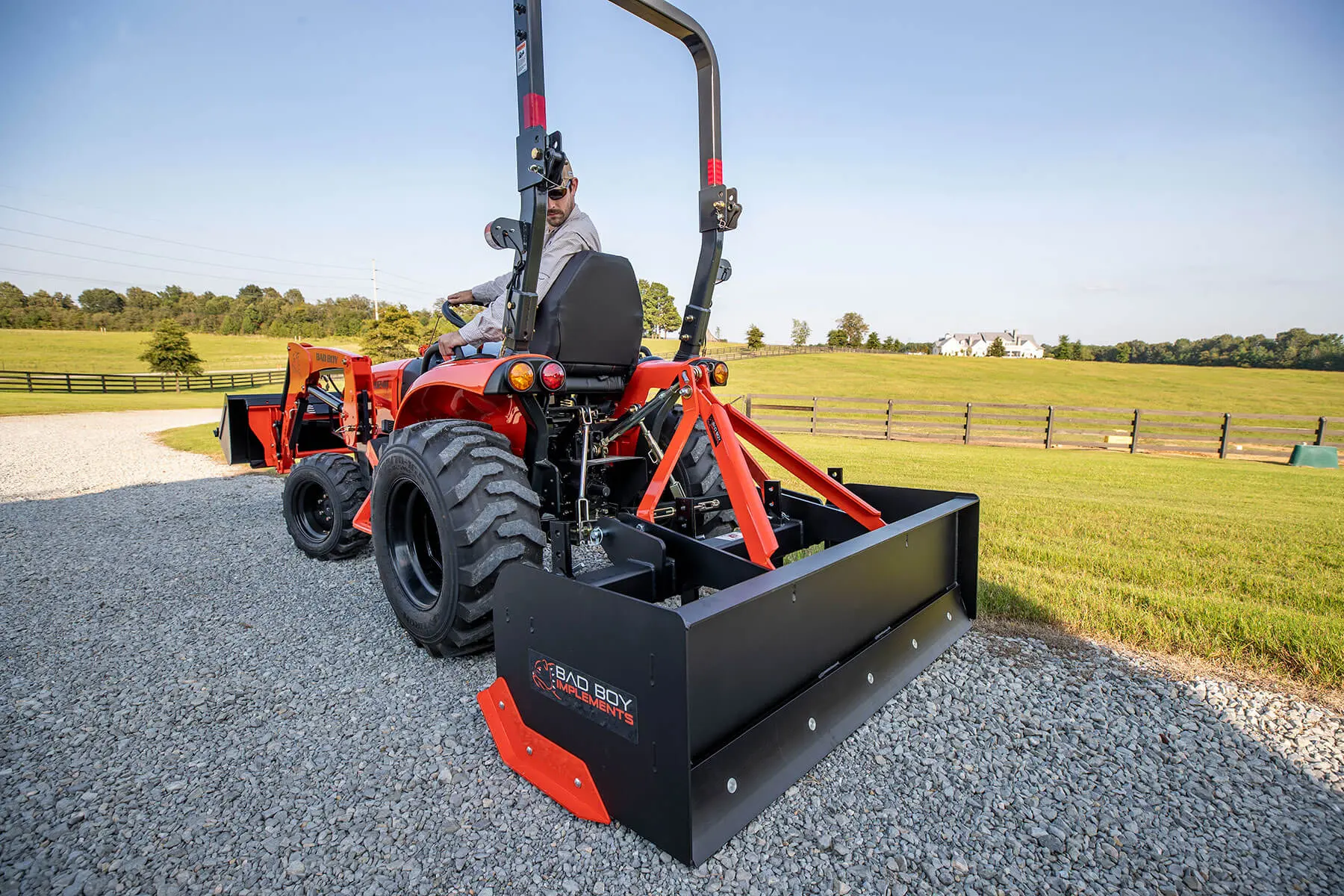

Box Blade
Size | 4' Box Blade | 5' Box Blade |
---|---|---|
Width | 48" | 60" |
HP Rating | 20-55 | 25-55 |
Moldboard Depth | 18 | 18 |
Shanks | 4 Adjustable | 4 Adjustable |
Blades (Scalping or Cutting) | 2 | 2 |
Weight | 389 lbs. | 436 lbs. |
Hitch | CAT 1 or Quick Hitch | CAT 1 or Quick Hitch |
Construction Features | 1/4" sides and 3/16" moldboard; Replaceable skids; 4" x 1/4" wall square tubing main frame | 1/4" sides and 3/16" moldboard; Replaceable skids; 4" x 1/4" wall square tubing main frame |
Size | 6' Box Blade | 7' Box Blade |
---|---|---|
Width | 72" | 84" |
HP Rating | 25-55 | 80 Max |
Moldboard Depth | 18 | 18 |
Shanks | 6 Adjustable | 7 Adjustable |
Blades (Scalping or Cutting) | 2 | 2 |
Weight | >510 lbs. | 568 lbs. |
Hitch | CAT 1 or Quick Hitch | CAT 2 or Quick Hitch |
Construction Features | 1/4" sides and 3/16" moldboard; Replaceable skids; 4" x 1/4" wall square tubing main frame | 1/4" sides and 3/16" moldboard; Replaceable skids; 4" x 1/4" wall square tubing main frame |
